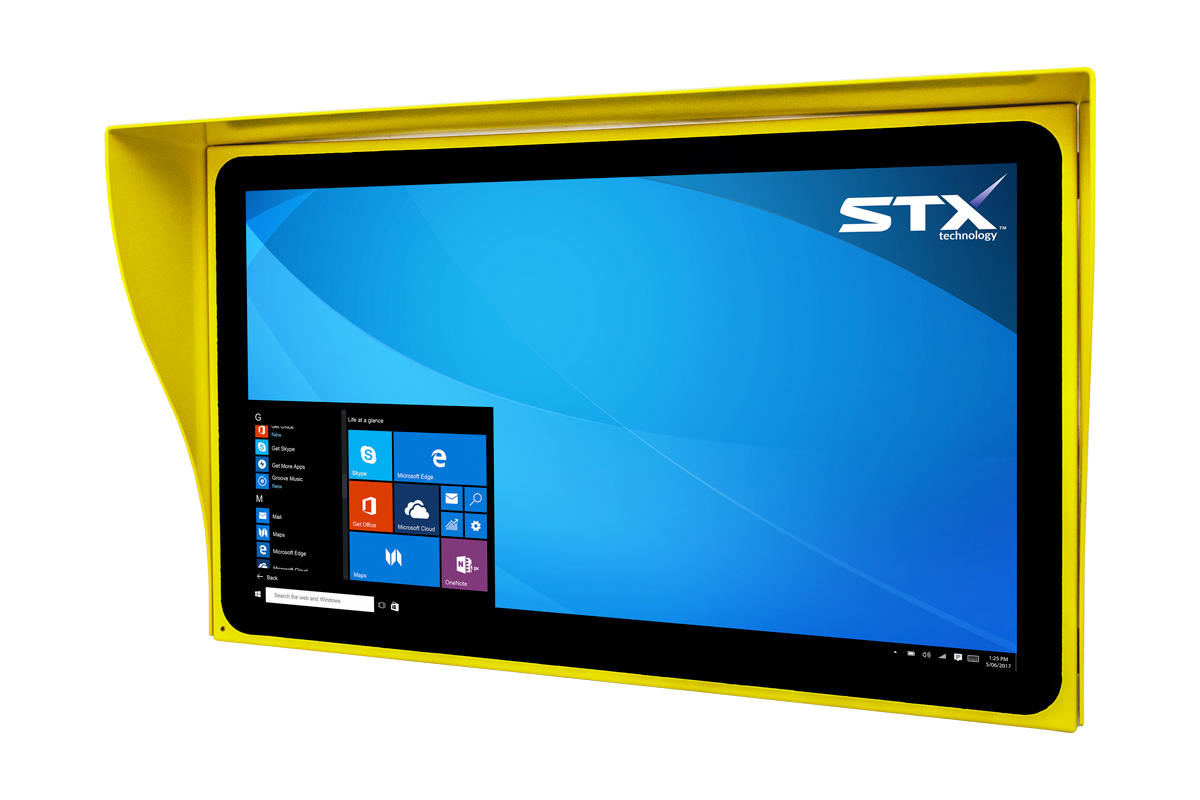

X7616 15.6 Inch Industrial Touch Panel PC

- 15.6 inch Touch Screen
- 1920 x 1080 Full HD resolution
- 16:9 widescreen display
- TPM2.0 - Windows 11 Compatible
- Fanless Design
- Fully sealed enclosure
- Tough Aluminium Construction
- IP67 / IP68 industrial connectors
- 10VDC~30VDC Power Input

Overview
Key Features
Order Options
Specifications
Accessories
Similar Products

designed for industrial use

mounting

Engineered Tough for Extreme Environments

110VAC~240VAC or 10VDC~30VDC Power Input
Responsive Touch Screen
Tough Aluminium Enclosure

Proven in Extreme Conditions

IP66 / IP69K / NEMA 4X Aluminium Enclosure
Fanless Construction
IP67 / IP68 Connectors

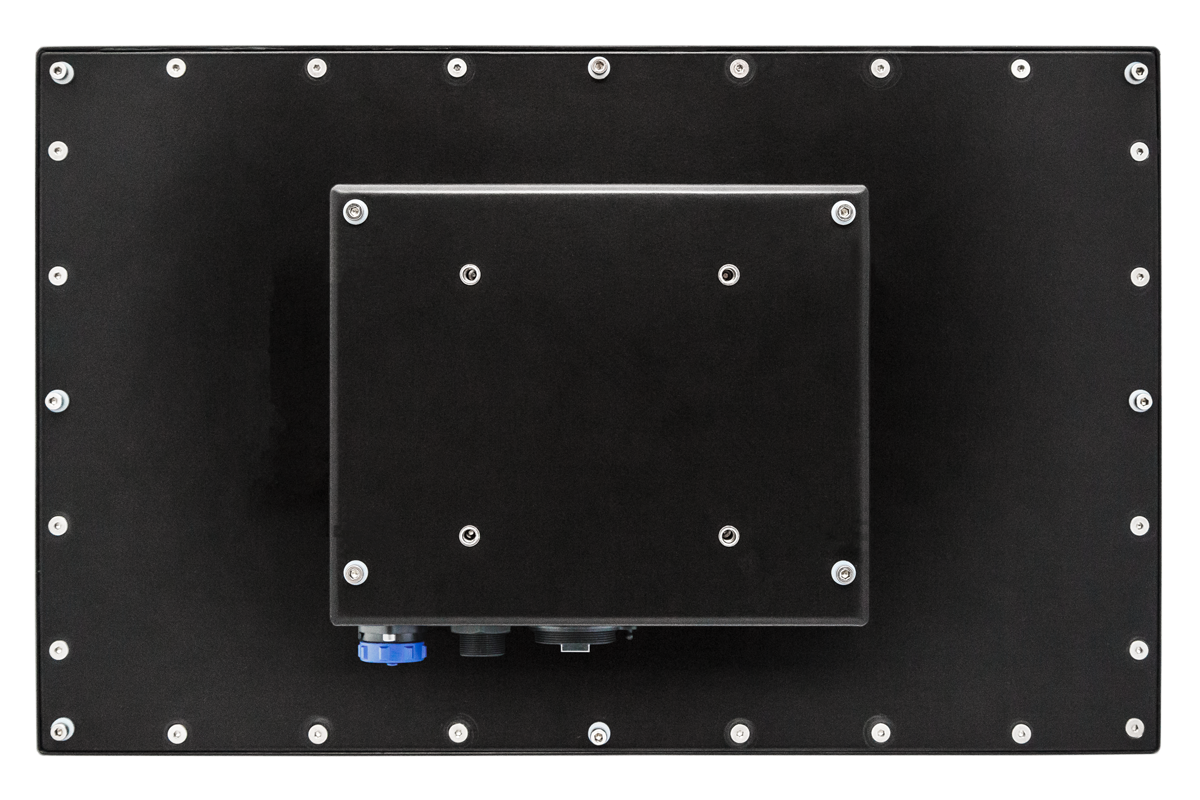

Easy Mounting Options

Standard Side Stud Mounting
Optional VESA Mount
Optional Stands

ip rated industrial connectors

applications

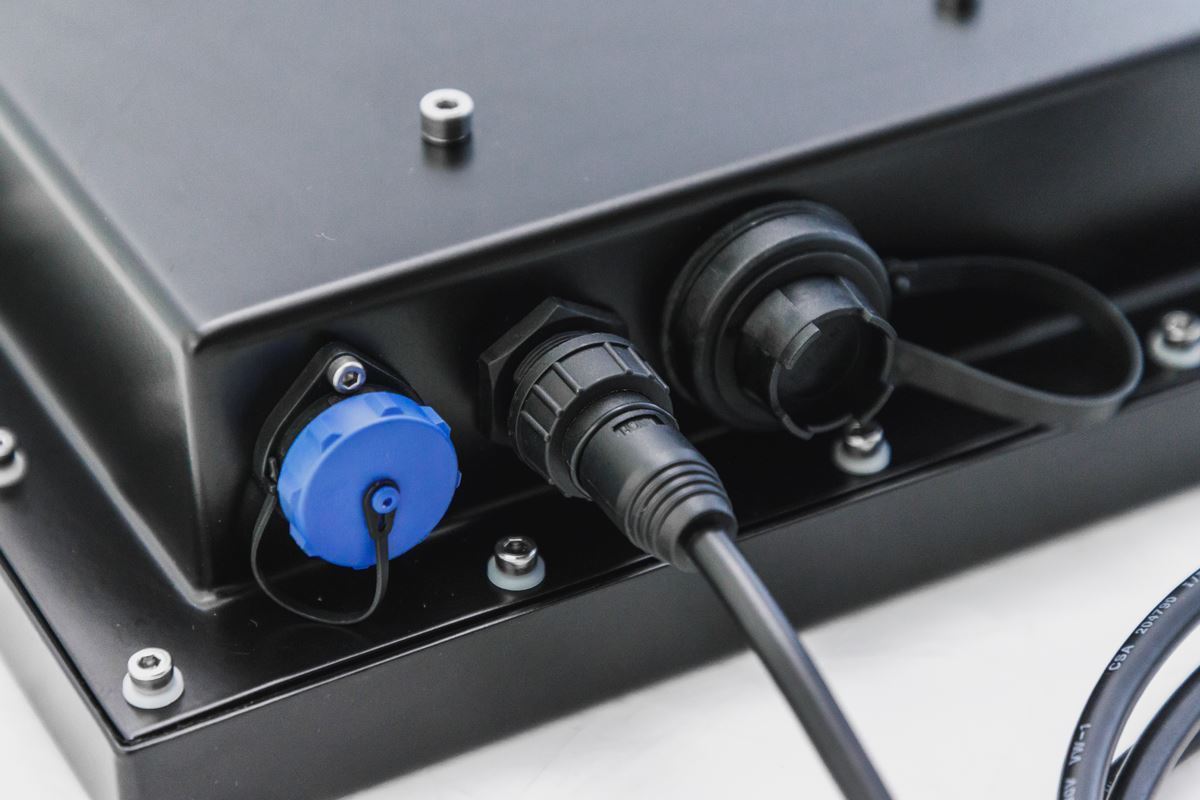

Waterproof Connectors

IP67 / IP68 Industrial Connectors
Power / USB / Ethernet
Connector Protection for Tough Wash Down
Harsh Environment WiFi Antenna

Used Across Industries

Food Processing
Meat Production
Fish Production
Pharmaceutical
Chemical

Automation & Control
Agriculture
Horticulture
Dairy
Mining

Applications

Weigh Scale
Barcode Scanning
Data collection
Grading
Loading Applications
Dispatch

The X7600 Rugged Touch Computer is manufactured in New Zealand using high-quality industrial components and comes backed by a local Service Team.

Contact STX Technology for more information or to request a quote.

Engineered for Tough Environments
Resistive or Projective Capacitive (PCAP) Touch Screen
Fully Sealed Tough Aluminium Enclosure
350 nits display
Intel® Generation 11 CPU
Celeron® / Core™ i5 / Core™ i7 CPU Options
TPM2.0 - Windows 11 Compatible
Fanless Design - Resistant to dust and particle intake
VESA or Panel Mount
10~30VDC Power Input
Industrial Wide Temp SSD Hard Drive
Network Boot (PXE Boot)
Comprehensive Support

15.6 inch Resisitive Touch

STX Technology X7600 Aluminium Panel PC

X7615-C4-RT

Intel® Celeron® 6305U

8GB DDR4 RAM

120GB SSD

(RAM options: 16GB, 24Gb, 40GB)

X7615-C5-RT

Intel® Core™ i5-1135G7

8GB DDR4 RAM

120GB SSD

(RAM options: 16GB, 24Gb, 40GB)

X7615-C7-RT

Intel® Core™ i7-1165G7

8GB DDR4 RAM

120GB SSD

(RAM options: 16GB, 24Gb, 40GB)

15.6 inch Projective Capacitive Touch (PCAP)

STX Technology X7600 Aluminium Panel PC

X7615-C4-PT

Intel® Celeron® 6305U

8GB DDR4 RAM

120GB SSD

(RAM options: 16GB, 24Gb, 40GB)

X7615-C5-PT

Intel® Core™ i5-1135G7

8GB DDR4 RAM

120GB SSD

(RAM options: 16GB, 24Gb, 40GB)

X7615-C7-PT

Intel® Core™ i7-1165G7

8GB DDR4 RAM

120GB SSD

(RAM options: 16GB, 24Gb, 40GB)

Standard Features

Aluminium
VESA Mount or Panel Mount
10~30VDC power input
Network Boot (PXE Boot)

Optional Features

Display Brightness:

High Brightnes 600nits
High Brightnes 1000nits

Power:

240VAC
110VAC
Other voltages

System:

256GB / 512GB
Up to 4 Ethernet 1000Mbp
Up to 8 RS232 / RS422 / RS485
CAN bus
High Speed Serial (to 3M Baud)
3G / 4G or 4G / 5G

Material:

Aluminium

Mounting:

VESA Mount
Panel Mount

Finish:

Matte Black
Colour of Choice
Brushed

STX Technology X7600 Aluminium Resistive Touch Monitor

Click Here to see the X7600 Industrial Touch Panel Monitor Range

Touch
Touch Type	Resistive Touch or Projected Capacitive Touch (PCAP Touch)

Display
LCD Size	15.6 inch, 16:9
Colours	16.2 million
Resolution	1920 x 1080 Full HD
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° , Vertical: 70°
Response Time	14.5 msec
Brightness (Typical)	350 nits (optional 600 or 1000 nits)

System
CPU	Intel® Celeron® 6305U / Intel® Core™ i5-1135G7 / Intel® Core™ i7-1165G7
System Memory	8 GB (optional 16GB / 24GB / 40GB)
Hard Drive	120GB SSD (optional 256GB / 512GB)
Operating systems	Windows 10 or Windows 11 (optional Linux / Android)
Boot Options	Network Boot (PXE Boot)

Ports
USB	1 x USB
Serial	1 x RS-232 (optional up to 8 x RS232) RS485 or RS422 CAN Bus High Speed Serial RS232/RS422/RS485 (to 3M Baud)
Connectivity	1 x Ethernet 1000Mbps (optional up to 3 Ethernet 1000Mbps) WiFi Dual Band Bluetooth 3G / 4G LTE or 4G / 5G

Mechanical & Environmental
Material	Aluminium
Finish	Brushed (optional Highly Polished)
Mounting	VESA Mount / Panel Mount
Connectors	IP67 / IP68
Power Input	10VDC~30VDC (optional 110~240VAC)

Accessories
Keyboard	Optional IP68 Keyboard and Keyboard Tray Kit
Mounting Options	Various mounting kits available including top side and wall mounting

Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and mounting accessories.

	STX Technology Stainless Steel Floor Stand
	STX Technology Stainless Tabletop Stand
	IP68 Water resistant Silicone Keyboard
