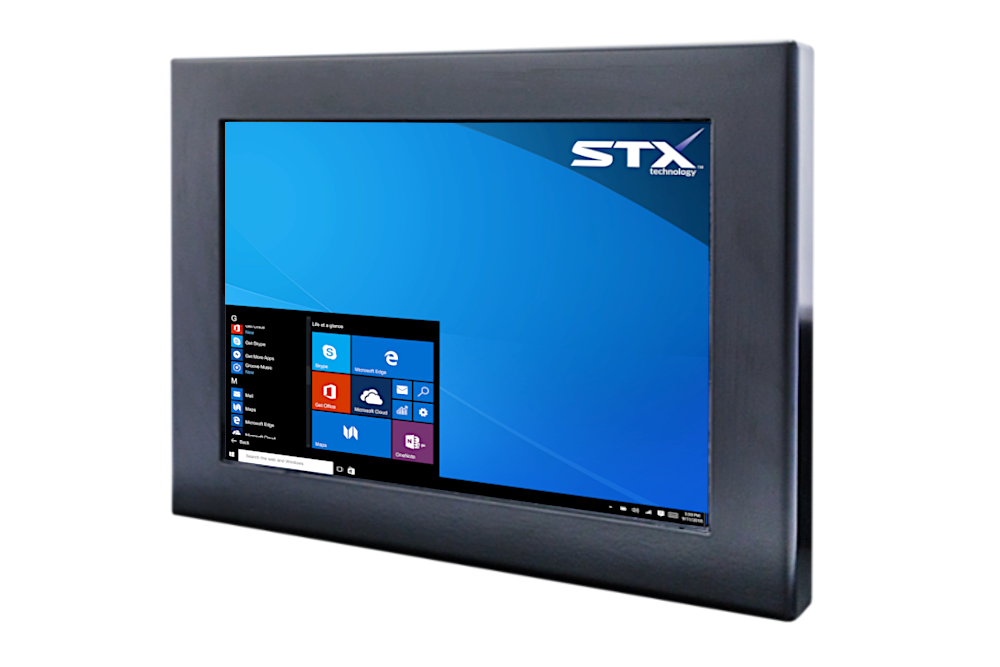

X7312 12 Inch Industrial Touch Panel Monitor

  • - 12.1 inch Touch Screen (4:3)
  • - Multiple Video Inputs: VGA, HDMI & DVI or USB & RS-232
  • - Tough Aluminium Construction
  • - Matte Black
  • - Designed and Manufactured in New Zealand
  • - Global support: New Zealand, Australia, UK, USA and other countries

industrial use

Designed specifically for industrial use

  • 10VDC~30VDC power input
  • High quality touch screen

Proven product

Proven in rugged conditions

  • Aluminium enclosure
  • Fanless construction

mount

Easy mounting options

  • VESA
  • Panel mount

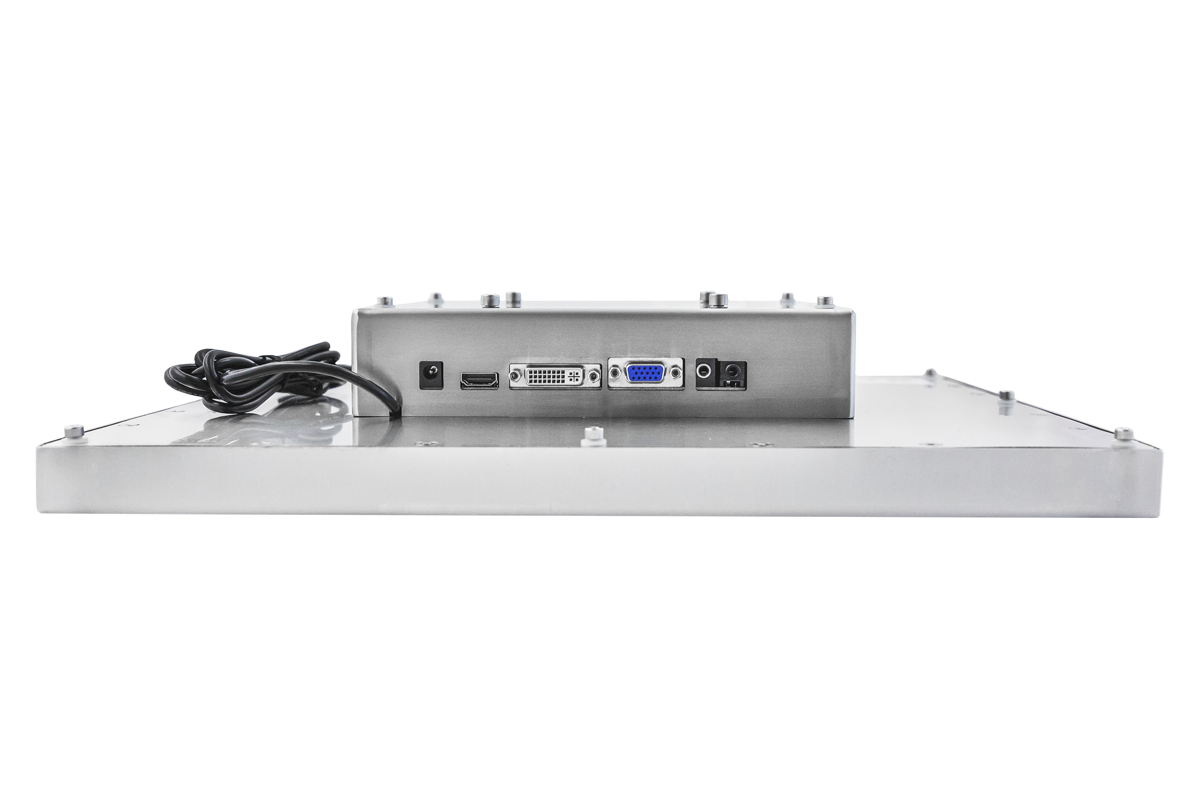

ports

Ports

  • 1 x VGA
  • 1 x HDMI
  • 1 x DVI

Industrial Use

Used across industries

  • Warehousing
  • Food Processing
  • Dairy
  • Mining
  • Transportation
  • Construction
  • Agriculture
  • Horticulture
  • Forestry
  • Marine

applications

Applications

  • Information Display
  • Safety
  • Data
  • Collection
  • Loading Applications
  • Barcode Scanning



STX Technology has extensive experience in the design and manufacture of industrial, tough environment computing with proven products in an array of rugged environments. For an industrial touch computing solution for virtually any application, the quality and integrity of the X7300 range ensures reliability and performance.

The X7300 Industrial Touch Panel Monitor is available in a range of screen sizes, including large format. All STX Technology products are backed up by local support. Contact the STX team today for more information or to request a quote.

  • Designed and built for tough environments
  • Resistive or Projective Capacitive (PCAP) touch screen
  • Strong aluminium enclosure
  • Matte black
  • VESA mount
  • 12VDC power input
  • Designed and manufactured in New Zealand
  • New Zealand and Australian support
X7300 Projective Capacitive Touch Screen

X7224 Resistive Touch

Resistive

X7224 Resistive Touch

Projective Capacitive

X7312-M-RT

Resistive touch screen
Aluminium
VESA mount

X7312-M-PT

Projective Capacitive (PCAP) touch screen
Aluminium
VESA mount

OPTIONS

Mounting
Panel Mount


High Brightness Displays
600 nits for bright environments
1000 nits for outdoors


Materials and Finishes
Aluminium
Matte black
Colour of choice


X7224 Resistive Touch

Link Here to Industrial Panel PC Range

Touch
Touch Type Resistive or Projective Capacitive (PCAP) touch screen
Display
LCD Size 12.1 inch, 4:3
Colours 16.2 million
Resolution 1024 x 768
Other Supported Resolutions 640 x 480, 800 x 600
Contrast Ratio 500:1
Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time 11.5 msec
Brightness (Typical) 350 nits

Inputs
Power Input 10~30VDC (optional 110VAC~240VAC with Power Brick)
Touch USB or RS-232 options
Video VGA or HDMI or DVI options

Mechanical & Environmental
Material Aluminium
Finish Standard aluminium (optional matte black or other colours)
Mounting VESA or panel mount

Click here and link through to accessories

Accessories include wall mounting brackets, complete range of IP67 industrial connectors, IP68 keyboards and keyboard mounting accessories

Link Here to Accessories

X7600 Aluminium Monitor Range

X7500 Monitor Range

X5400 Rackmount Monitor Range

 X4200 Industrial Panel Mounted Monitor  X4500 Fully Sealed Industrial Panel Mounted Monitor rackmount monitor
  • Fully sealed aluminium enclosure
  • Proven reliability
  • IP67 Connectors
  • Fully sealed stainless steel enclosure
  • IP67 (NEMA 6) connectors
  • Engineered for demanding environments
  • Strong steel enclosure
  • Touch monitor
  • 19" Standard EIA-310 rackmount
