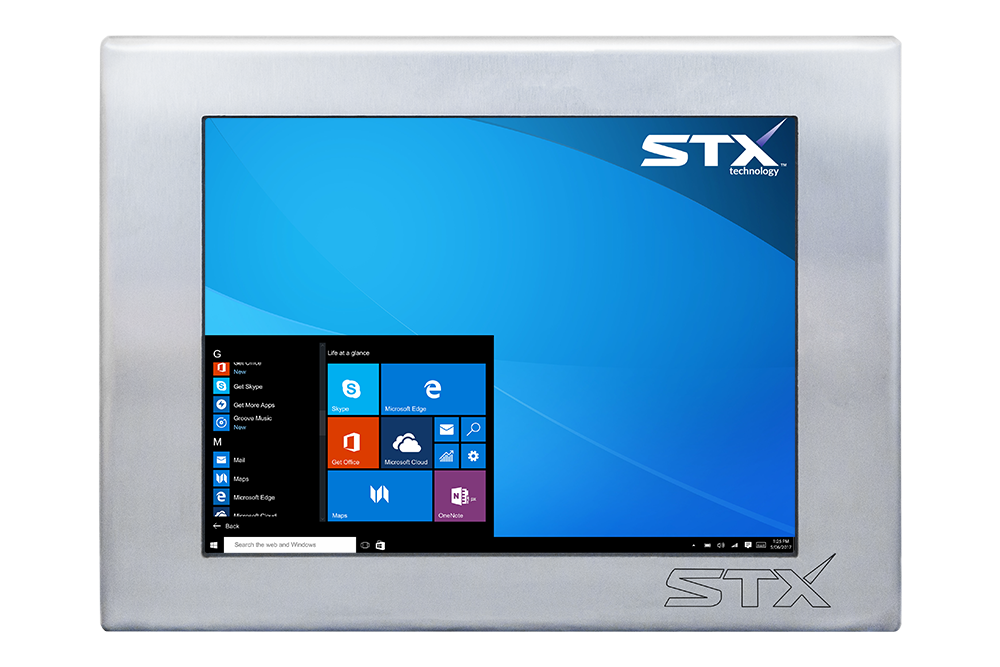

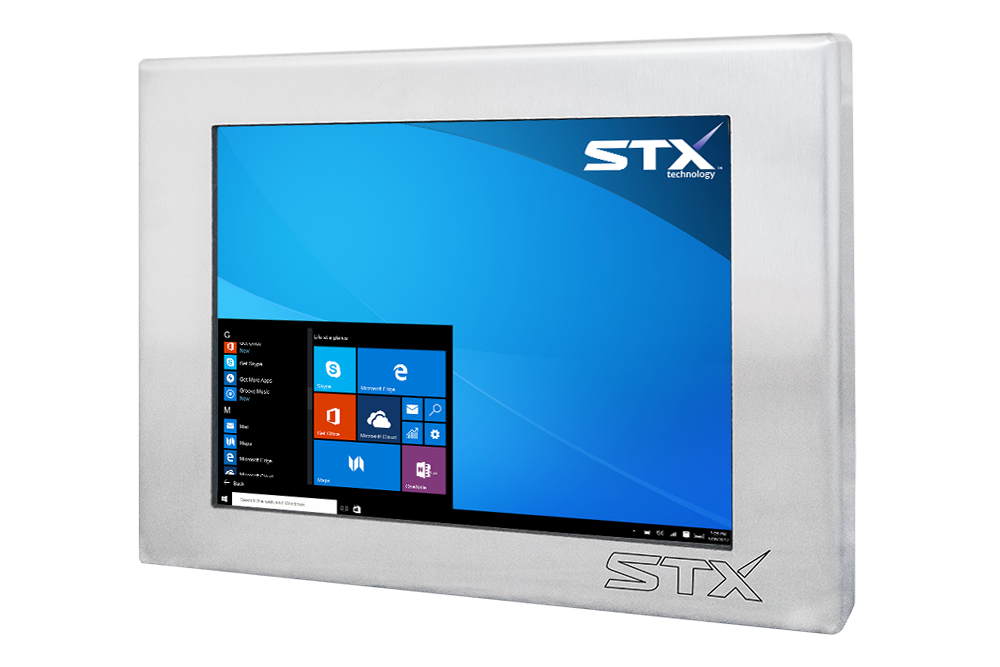

X7308-EX 8.4 Inch Industrial Touch Panel Extender Monitor

X7308 8.4 Inch Industrial Touch Panel Monitor

- 8.4 inch Touch Screen (4:3)
- VGA or DVI or HDMI Video Input
- Runs up to 50M from Computer
- Optional Slave Screen or Second Screen for X7300 or X8300 Computer Ranges
- Tough Aluminium Construction
- Matte Black (Other Colours Available)
- 240VAC or 110VAC (optional DC)
- Warehouse Management
- Production Information Display
- Industrial Information Display
- Staff Information Display
- Designed and Manufactured in New Zealand
- New Zealand, Australian and Global support

Overview
Key Features
Accessories
Order Options
Specifications

Designed specifically for industrial use

Industrial 10VDC~30VDC power input
High quality touch screen
Fully sealed stainless steel enclosure.

Proven in extreme conditions

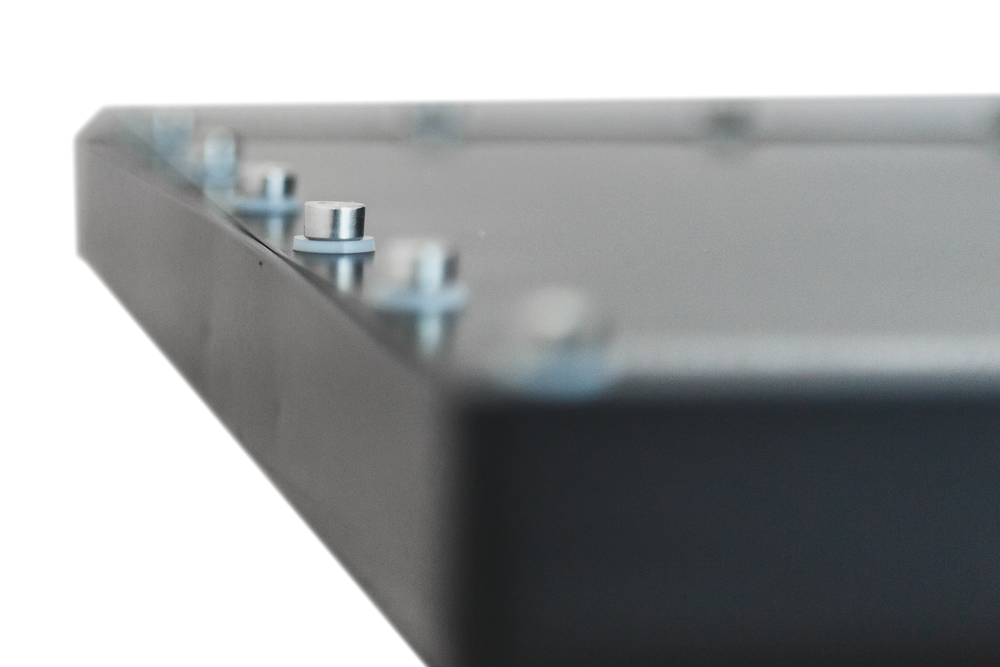

Strong enclosure
Fanless construction

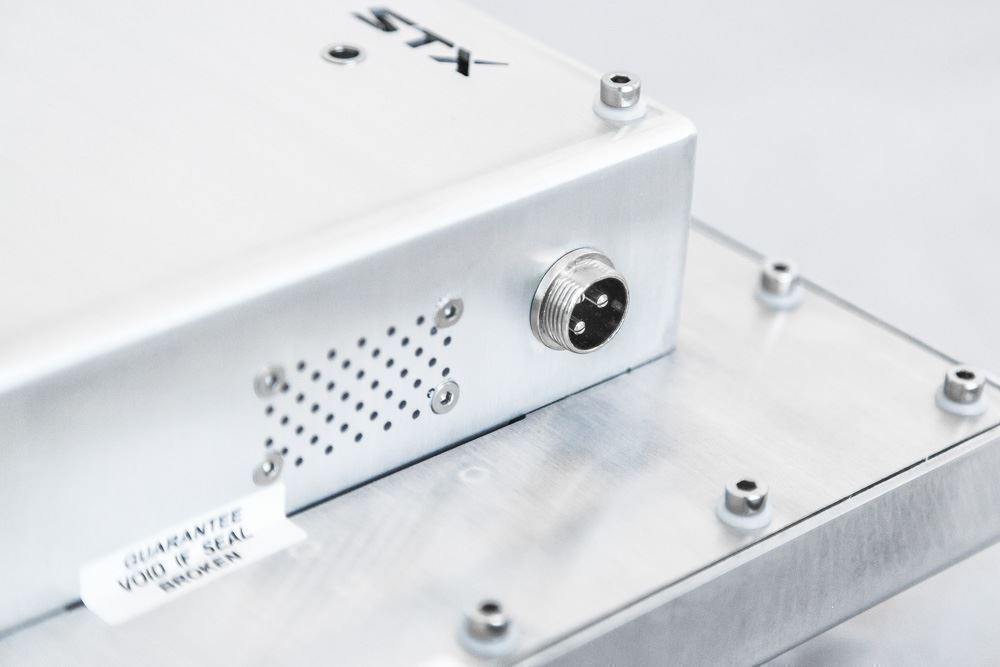

IP67 / IP68 connectors

Easy mounting options

VESA

applications

Tough Aluminium Construction

Industrial aluminium construction
Designed tough

Runs up to 50m from Computer

Warehousing
Food Processing
Dairy
Mining
Transportation

Construction
Agriculture
Horticulture
Forestry
Marine

Applications

Information Display
Safety
Data Collection
Loading Applications
Barcode Scanning

The STX X7300-EX Industrial Touch Extender Monitor Range is proven in a range of different applications including Warehouse Management, Production Line Status Display, Inventory Pick Status and other similar applications. The Tough Aluminium enclosure combined with various mounting options, 240VAC, 110VAC or DC power options, and connectivity options create a strong, tough, complete Industrial Touch Computing solution for virtually any application where a touch or non-touch commercial large screen monitor is required. STX has a wealth of experience in Industrial, Rugged and Harsh Environment computing with products that have proven themselves in the harshest of environments. The quality and integrity of the X7300-EX Industrial Touch Extender Monitor Range ensures sustained reliability and performance.

Designed and Built for Tough Environments
High Quality 8.4 inch Touch Screen
Runs up to 50M from Computer
Optional Slave Screen or Second Screen for X7300 or X8300 Computer Ranges
Tough, Strong Aluminium Enclosure
Matte Black (optional: other colours)

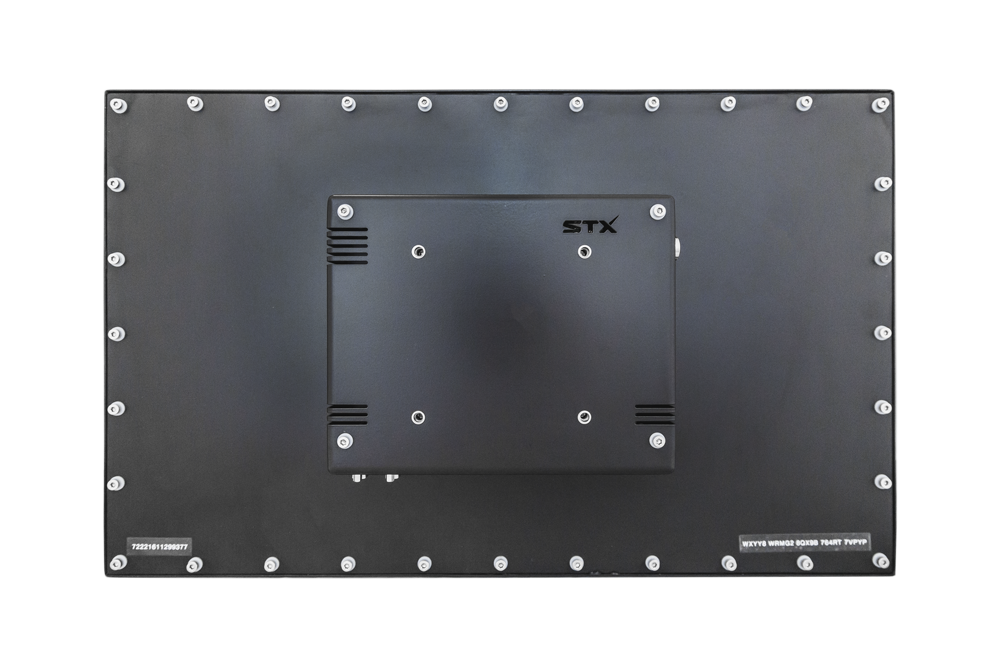

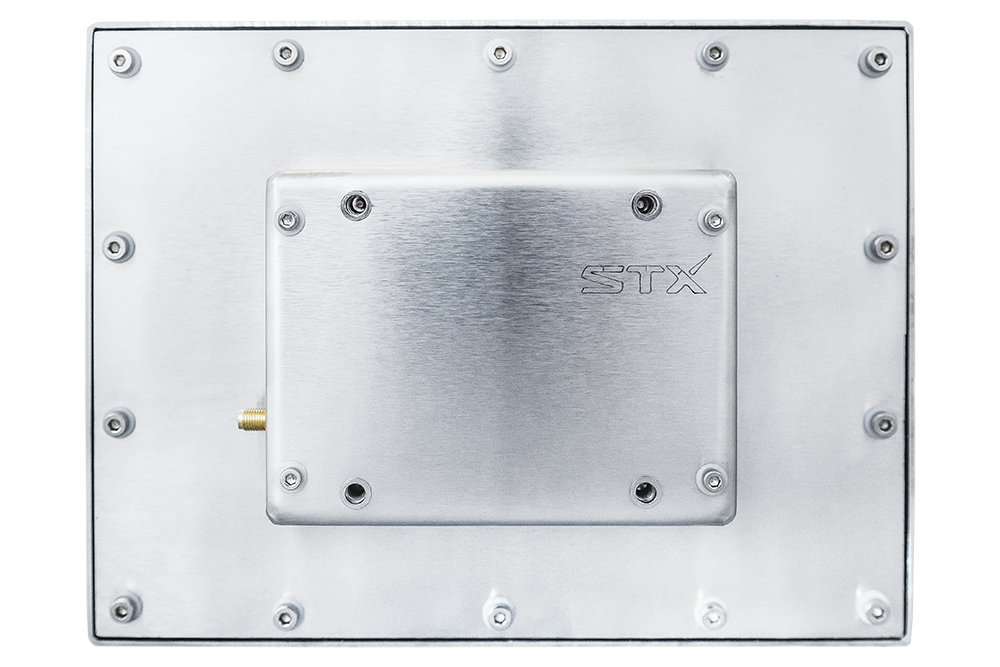

VESA 400mm x 400mm Mounting
Warehouse Management
Production Information Display
Industrial Information Display
Staff Information Display
240VAC or 110VAC Power (optional DC Power)
Designed and Manufactured in New Zealand
New Zealand, Australian and Global support

Gasket for use with Panel Mount Option
X7300-EX Power Brick
X7300-EX Stainless Steel Floor Stand
X7300-EX Stainless Steel Table Top Stand

Resistive touch

Resistive

extender monitor projective capacitive touch

Projective Capacitive

X7308-EX-RT

Resistive Touch Screen
Aluminium Enclosure
Matte Black Finish
VESA Mount

X7308-EX-PT

Projective Capacitive Touch (PCAP) Screen
Aluminium Enclosure
Matte Black Finish
VESA Mount

Options:

Panel Mount System
VGA or DVI or HDMI Input
Various Finish Colour Options
DC Power Input

Displays:

High Brightness 600 nits for bright environments
High Brightness 1000 nits for outdoors

Touch
Touch Type	Resistive or Projective Capacitive (PCAP) Touch Screen

Display
LCD Size	8.4 inch, 4:3
Colours	16.2 million
Resolution	800 x 600
Other Supported Resolutions	640 x 480
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	11.5 msec
Brightness (Typical)	350 nits (optional High Brightness)

Inputs
Power Input	240VAC or 110VAC (optional: DC)
Touch	USB or RS-232 options
Video	VGA or HDMI or DVI options

Mechanical & Environmental
Width	253mm
Height	188mm
Display Area Width	170mm
Display Area Height	128mm
Material	Aluminium
Finish	Matte Black (optional: other colours)
Mounting	VESA 400mm x 400mm (optional: Panel Mount)
