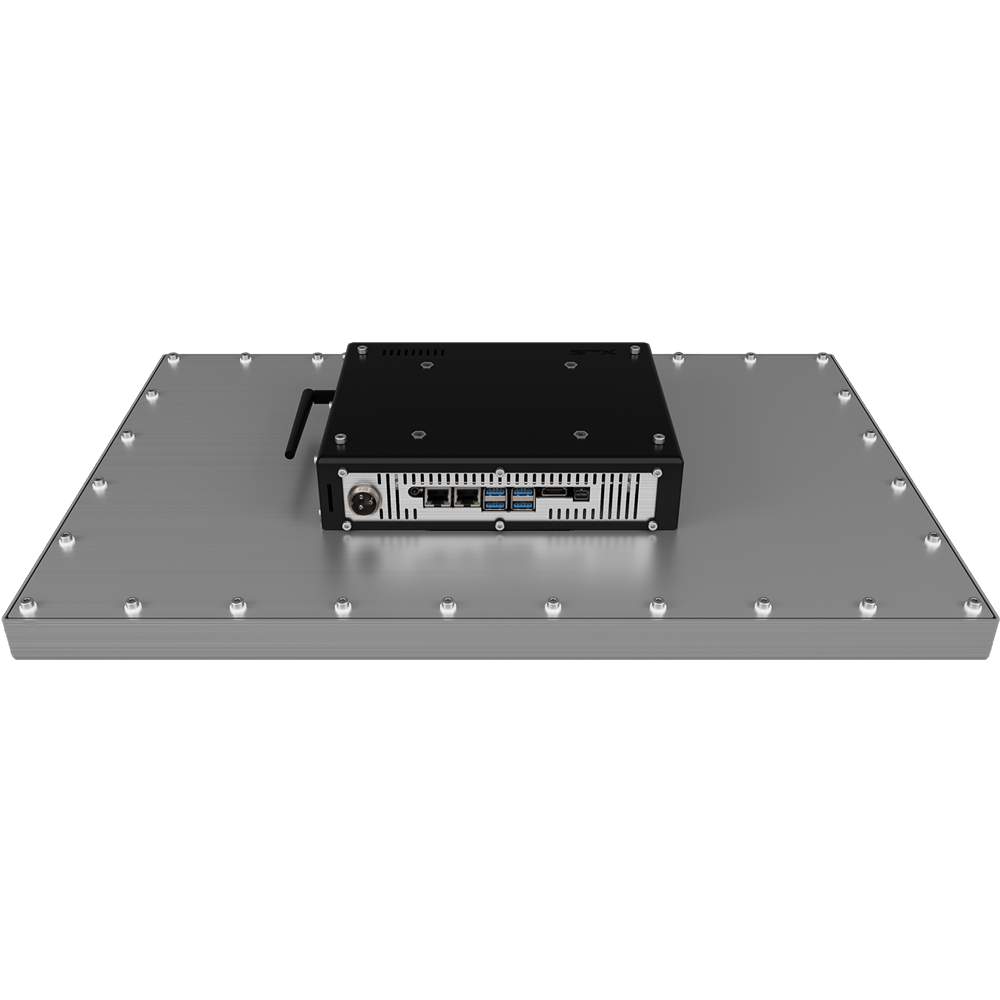

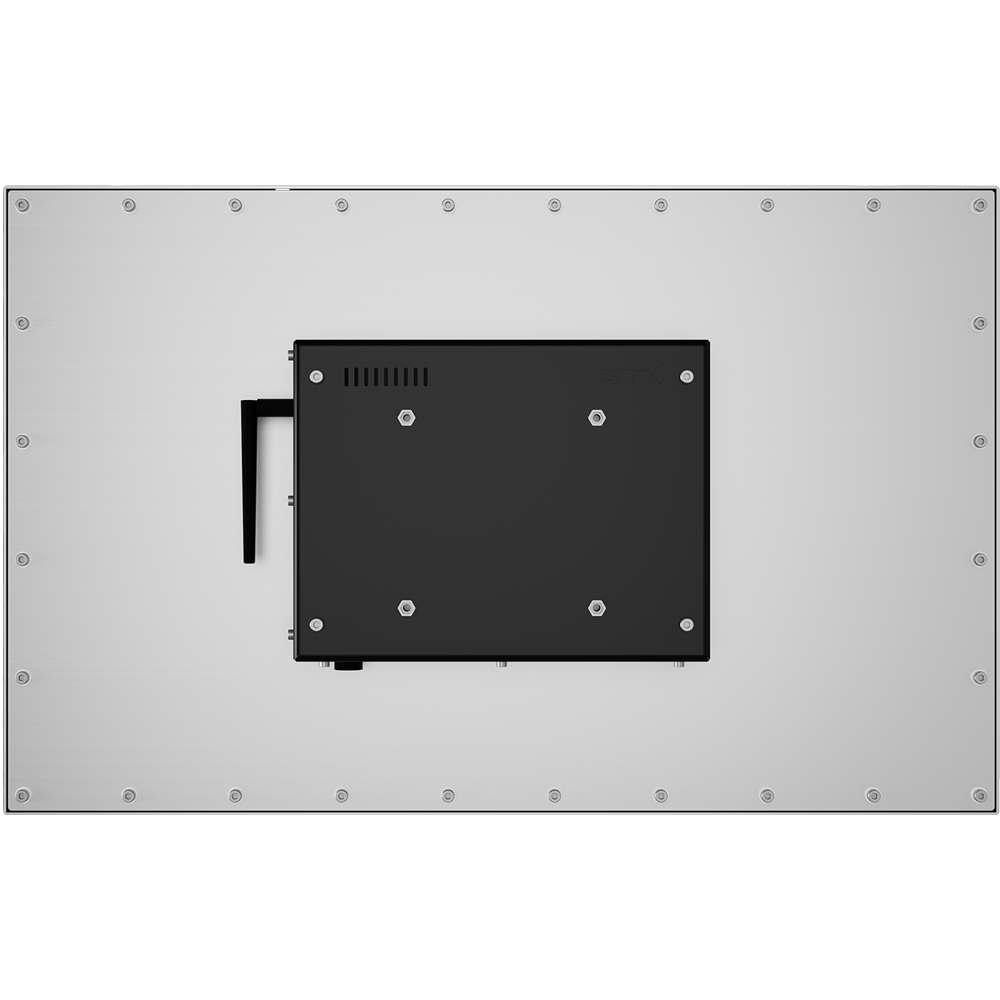

X7224 24 inch Industrial Touch Panel PC

- 24 Inch Touch Screen
- 1920 x 1080 Full HD
- 16:9 widescreen display
- TPM2.0 - Windows 11 Compatible
- 304 Stainless Steel
- Fanless Design
- 10VDC~30VDC Power Input

Overview
Key Features
Order Options
Accessories
Specifications
Similar Products

industrial use

Designed specifically for industrial use

10VDC~30VDC power input
High quality touch screen

Proven product

Proven in rugged conditions

Stainless Steel enclosure
Fanless construction

mount

Easy mounting options

VESA
Panel mount

ports

Ports

2 x RS232
1 x VGA
1 x HDMI
2 x Ethernet
2 x USB

Industrial Use

Used across industries

Warehousing
Food Processing
Dairy
Mining
Transportation

Construction
Agriculture
Horticulture
Forestry
Marine

applications

Applications

Information Display
Safety
Data

Collection
Loading Applications
Barcode Scanning

STX Technology has extensive experience in the design and manufacture of industrial, tough environment computing with proven products in an array of rugged environments. For an industrial touch computing solution for virtually any application, the quality and integrity of the X7200 range ensures reliability and performance.

Contact the STX Team today to find out more about the X7224 fanless industrial touch panel PC and other products.

Designed and built for tough environments
Resistive or Projective Capacitive (PCAP) touch screen
1920 x 1080 Full HD resolution 16:9
CPU options
Strong stainless steel enclosure
Fanless design, doesn’t suck in dust and other particles
Brushed or highly polished finish
VESA or panel mount
Wide 10~30VDC power input
Designed and manufactured in New Zealand
New Zealand, Australian and Global support

X7224 Resistive Touch Screen

Resistive	X7224 - C4 - RT Intel® Celeron® 4205U 4GBDDR3 RAM 120GB SSD VESA mount 10~30VDC power input	X7224 - C5 - RT Intel® Core™ i5-8265U 8GB DDR4 RAM 120GB SSD VESA mount 10~30VDC power input	X7224 - C7 - RT Intel® Core™ i7-8565U 8GB DDR4 RAM 120GB SSD VESA mount 10~30VDC power input
Projective Capacitive	X7224 - C4 - PT Intel® Celeron® 4205U 8GB DDR4 RAM 120GB SSD VESA mount 10~30VDC power input	X7224 - C5 - PT Intel® Core™ i5-8265U 8GB DDR4 RAM 120GB SSD VESA mount 10~30VDC power input	X7224 - C7 - PT Intel® Core™ i7-8565U 8GB DDR4 RAM 120GB SSD VESA mount 10~30VDC power input
		OPTIONS
Ram C5/C7 only: 16GB 24GB 40GB	Components: 256GB or larger SSD3 Ethernet 1000 Mbp ports 3G/4G GPS CAN bus	High Brightness Displays: 600 nits for bright environments 1000 nits for outdoors Resolution Option: 16:10 Display ratio 1920 x 1080 WUXGA resolution	Finishes: 304 Stainless steel 316 Stainless steel Brushed Highly polished Matte black
	Link Here for Monitor Range

Accessories include wall mounting brackets, IP68 keyboards and keyboard mounting accessories

Gasket for use with Panel Mount Option
X7200 80W Power Brick - X7200-PB803P
X7200 Stainless Steel Floor Stand
X7200 Stainless Steel Table Top Stand

Link Here to Accessories

Touch
Touch Type	Resistive or Projective Capacitive (PCAP)
Display
LCD Size	24 inch, 16:9 (optional 16:10)
Colours	16.2 million
Resolution	1920 x 1080 Full HD (optional 1920 x 1200 WUXGA)
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	14.5 msec
Brightness (Typical)	350 nits
System
CPU	Intel® Celeron® 4205U / Intel® Core™ i5-8265U / Intel® Core™ i7-8565U
System Memory	8GB DDR4 (Optional 16GB, 24GB, 40GB)
Hard Drive	120GB SSD
Operating systems	Windows 10 (optional Windows 11, Windows 8.1, Windows 7, Windows XP, Linux, Android)
TPM	TPM2.0 / TPM1.0 (Trusted Platform Module 2.0)
Wi-Fi	Wi-Fi and Bluetooth
Rear I/O
Serial Port	2 RS-232 (optional up to 6)
Ethernet	2 Ethernet 1000 Mbp (standard), 3 Ethernet (optional)
USB	1 USB 2.0 1 USB 3.0 (optional up to 4 USB 2.0)
Connectors	3 pin power connector
Mechanical & Environmental
Material	304 or 316 stainless steel
Finish	Brushed
Mounting	VESA or panel mount
Power Input	10~30VDC (optional 110~240VAC Power brick, other voltages)
Temperature Control	Fanless
Options
Connectivity	Wi-Fi & Bluetooth
4G & GPS
High Speed Serial RS232/RS422/RS485 (to 3M Baud)
CAN bus
