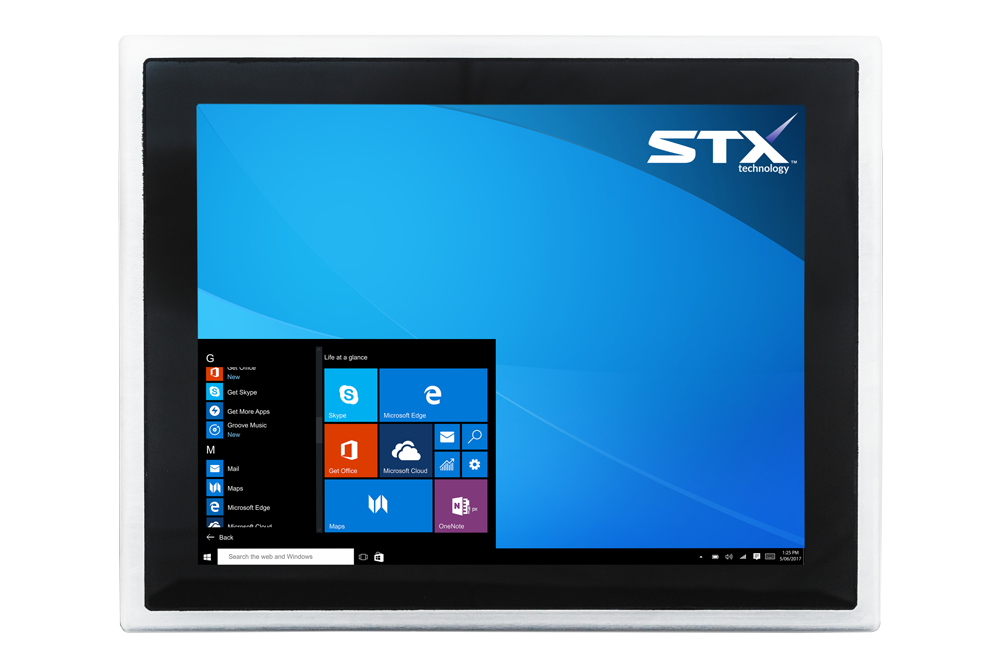

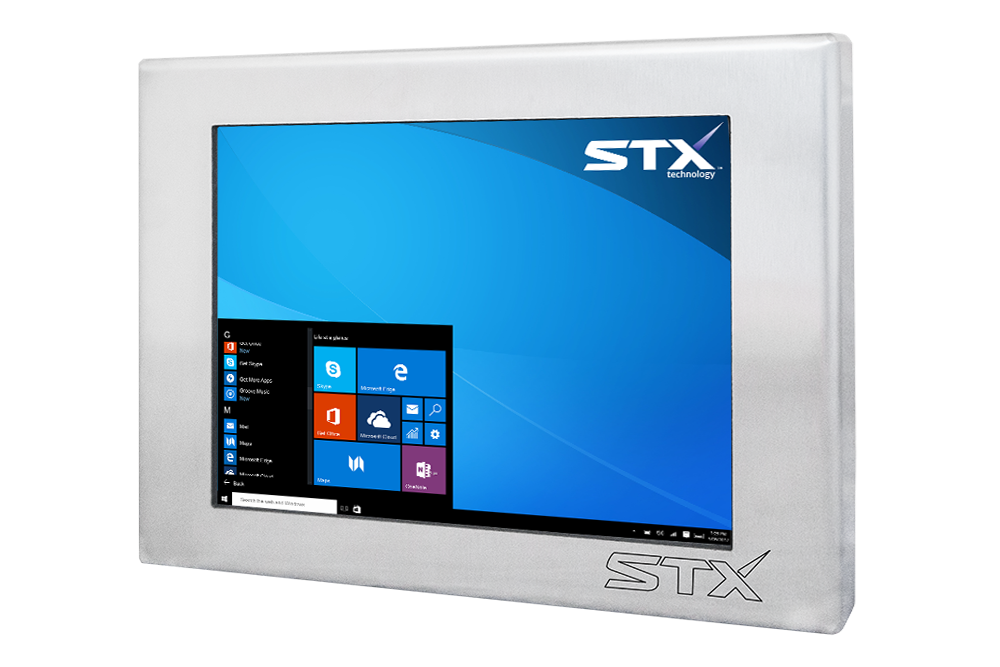

X7210 10 inch Industrial Touch Panel PC

  • - 10.4 inch touch screen
  • - CPU options
  • - 304 stainless steel
  • - Fanless design
  • - 10VDC~30VDC power input
  • - 3rd generation product

industrial use

Proven product

mounts

Designed specifically for industrial use

  • 10VDC~30VDC power input
  • High quality touch screen

Proven in tough conditions

  • Stainless steel enclosure
  • Fanless construction

Easy mounting options

  • VESA
  • Panel mount





industrial use

Proven product

Applications

Ports

  • 2 x RS232
  • 1 x VGA
  • 1 x HDMI
  • 2 x Ethernet
  • 2 x USB

Used Across Industries

  • Warehousing
  • Food Processing
  • Dairy
  • Mining
  • Transportation
  • Construction
  • Agriculture
  • Horticulture
  • Forestry
  • Marine



Applications

  • Information Display
  • Safety
  • CCTV
  • Data
  • Collection
  • Loading Applications
  • Barcode Scanning



STX Technology has extensive experience in the design and manufacture of industrial, tough environment computing with proven products in an array of rugged environments. For an Industrial touch computing solution for virtually any application, the quality and integrity of the X7200 range ensures reliability and performance.

Contact the STX Team today to find out more about the X7210 fanless industrial touch panel PC and other products.

  • Designed and built for tough environments
  • Resistive or Projective Capacitive (PCAP) touch screen
  • CPU options
  • Strong stainless steel enclosure
  • Fanless design, doesn’t suck in dust or other particles
  • Brushed or highly polished finish
  • VESA or panel mount
  • Wide 10~30VDC power input
  • Designed and manufactured in New Zealand
  • Comprehensive local support

X7210 Touch Screen




resistive touch screen

Resistive







X7210 - C4 - RT

2.4GHz Intel® Quad core N4200
4GB DDR3 RAM
120GB SSD
VESA mount
10~30VDC power input







X7210 - C5 - RT

3.0GHz Intel® Quad core i5-7200U
4GB DDR4 RAM
120GB SSD
VESA mount
10~30VDC power input





X7210 - C7 - RT

3.5GHz Intel® Quad core i7-7500U
4GB DDR4 RAM
120GB SSD
VESA mount
10~30VDC power input


projective capacitive touch screen

Projective Capacitive





X7210 - C4 - PT

2.4GHz Intel® Quad core N4200
4GB DDR3 RAM
120GB SSD
VESA mount
10~30VDC power input



X7210 - C5 - PT

3.0GHz Intel® Quad core i5-7200U
4GB DDR4 RAM
120GB SSD
VESA mount
10~30VDC power input



X7210 - C7 - PT

3.5GHz Intel® Quad core i7-7500U
4GB DDR4 RAM
120GB SSD
VESA mount
10~30VDC power input







OPTIONS





Ram C5/C7 only:

8GB
12GB
20GB



Components:

256GB or larger SSD3
Ethernet 1000 Mbp ports
3G/4G
GPS
CAN bus

High Brightness Displays:

600 nits for bright environments
1000 nits for outdoors


Finishes:

304 Stainless steel
316 Stainless steel
Brushed
Highly polished
Matte black



resistive touch screen



Link Here for Monitor Range



Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and keyboard mounting accessories.

Click here and link through to accessories

Link Here to Accessories

Touch


Touch Type Resistive or Projective Capacitive (PCAP)

Display
LCD Size 10.4 Inch, 4:3
Colours 16.2 million
Resolution 1024 x 768
Other Supported Resolutions 640 x 480, 800 x 600
Contrast Ratio 500:1
Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time 14.5 msec
Brightness (Typical) 350 nits

System
CPU 2.4GHz Intel® Quad Core CPU
System Memory 4 GB DDR3
Hard Drive 120GB SSD
Operating systems Windows 10 (optional Windows 7, Windows 8.1, Windows XP, Linux, Android)
Wi-Fi Wi-Fi and Bluetooth

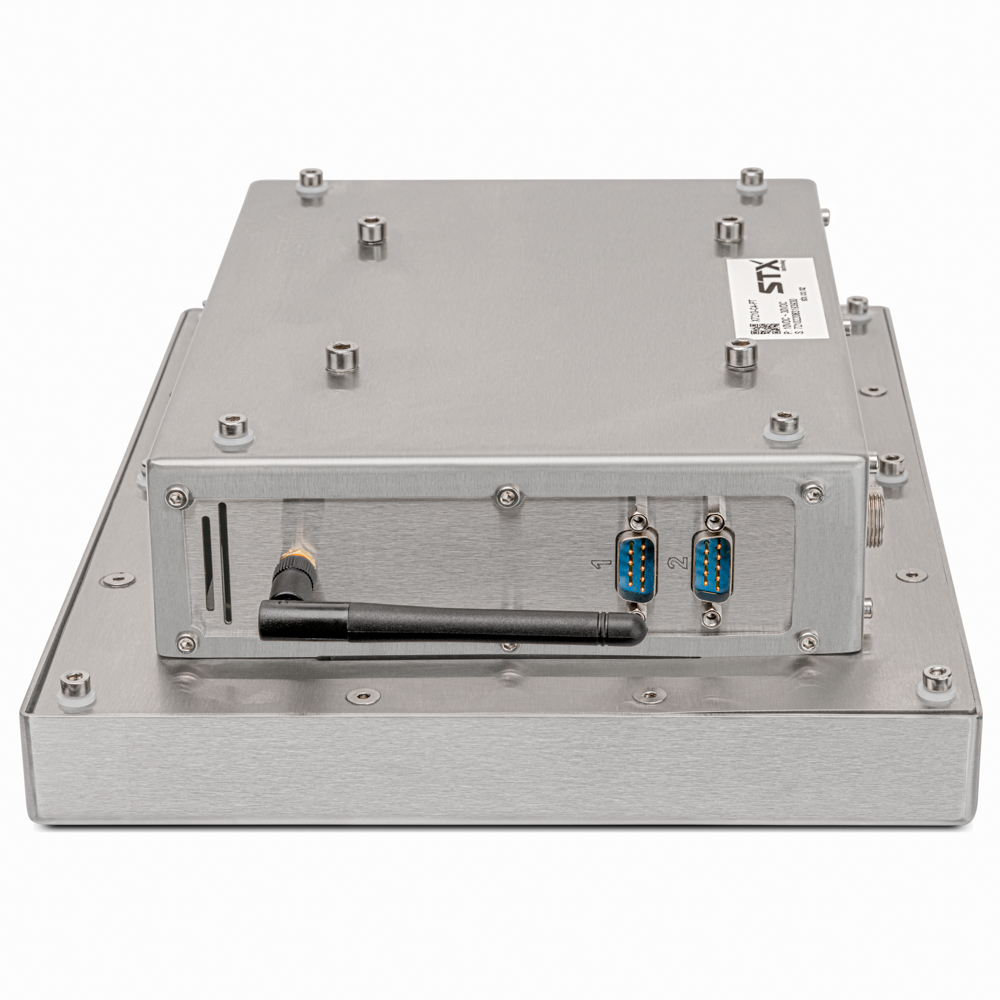

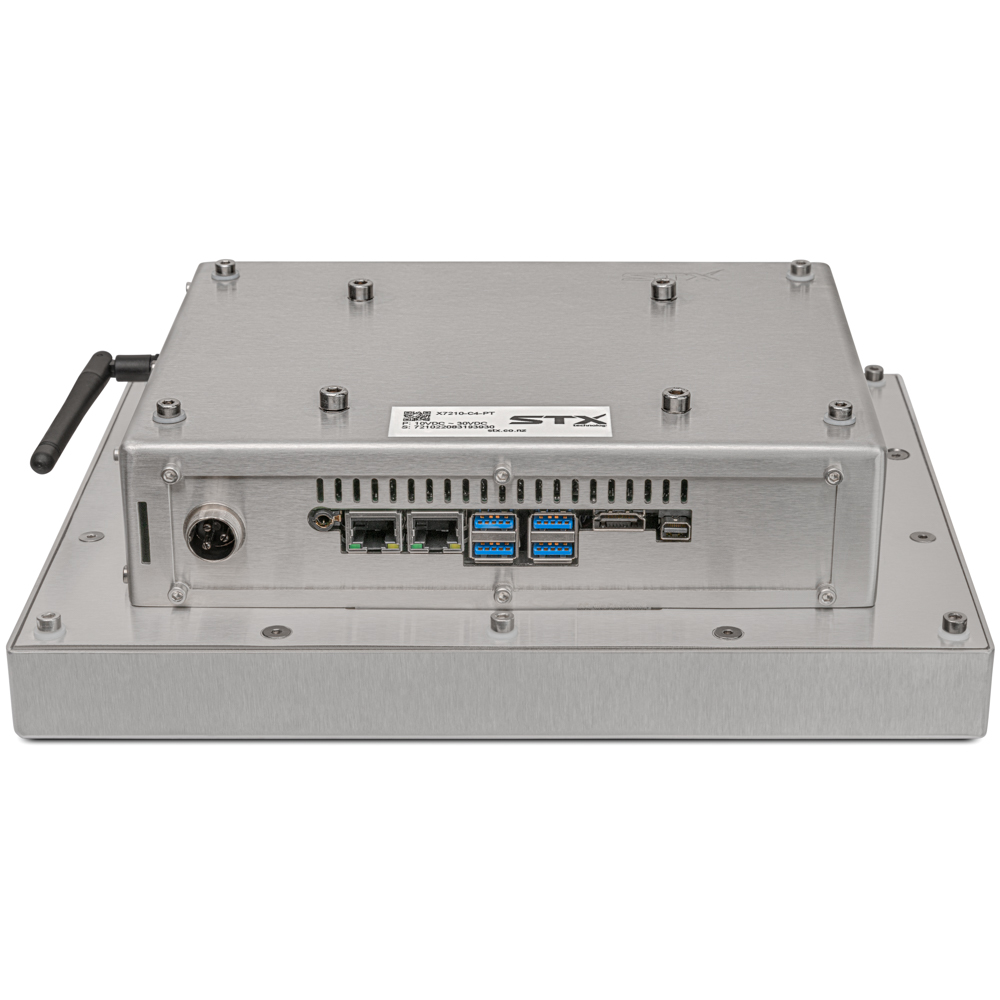

Rear I/O
Serial Port 2 RS-232 (optional up to 6)
Ethernet 2 Ethernet 1000 Mbp (standard), 3 Ethernet (optional)
USB 1 USB 2.0 1 USB 3.0 (optional up to 4 USB 2.0)
Connectors 3 Pin Power Connector

Mechanical & Environmental
Material 304 or 316 stainless steel
Finish Brushed
Mounting VESA or panel mount
Power Input 10~30VDC (optional 110~240VAC Power brick, other voltages)
Temperature Control Fanless

Options
Connectivity Wi-Fi & Bluetooth
  4G & GPS
  High Speed Serial RS232/RS422/RS485 (to 3M Baud)
  CANBus

X7300 Monitor Range

X7500 Monitor Range

X7200 Panel PC Range

 X4300 Industrial Panel Mounted Monitor  X4500 Fully Sealed Industrial Panel Mounted Monitor  X7200 Industrial Panel Mounted Computer
  • Aluminium enclosure
  • Low weight
  • Fanless design
  • Fully sealed stainless steel enclosure
  • IP67 (NEMA 6) connectors
  • Engineered for demanding environments
  • Stainless steel enclosure
  • All-in-one computer
  • Multiple CPU options
