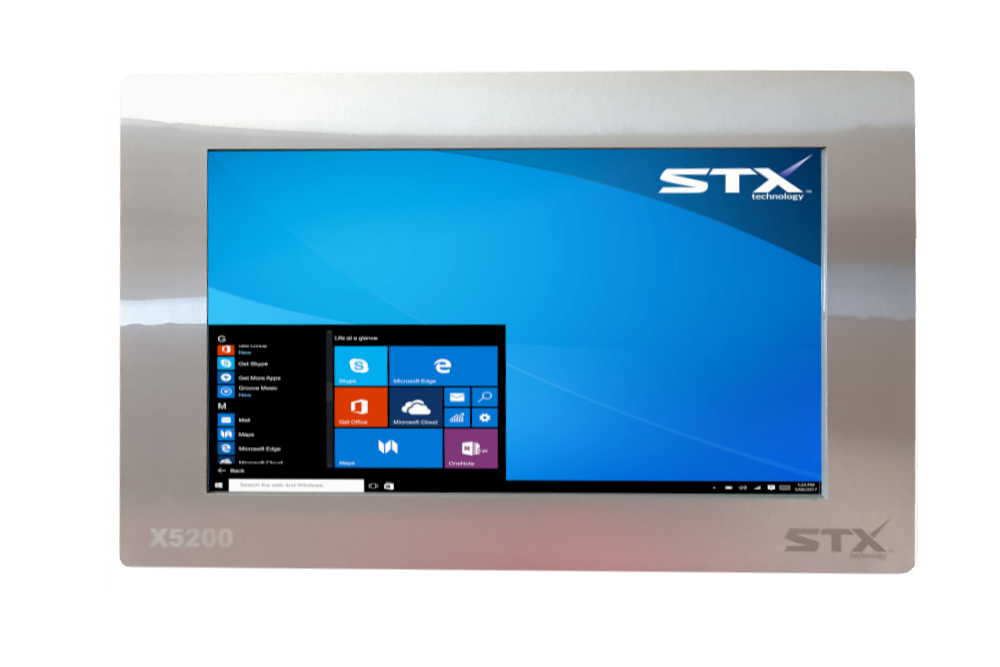

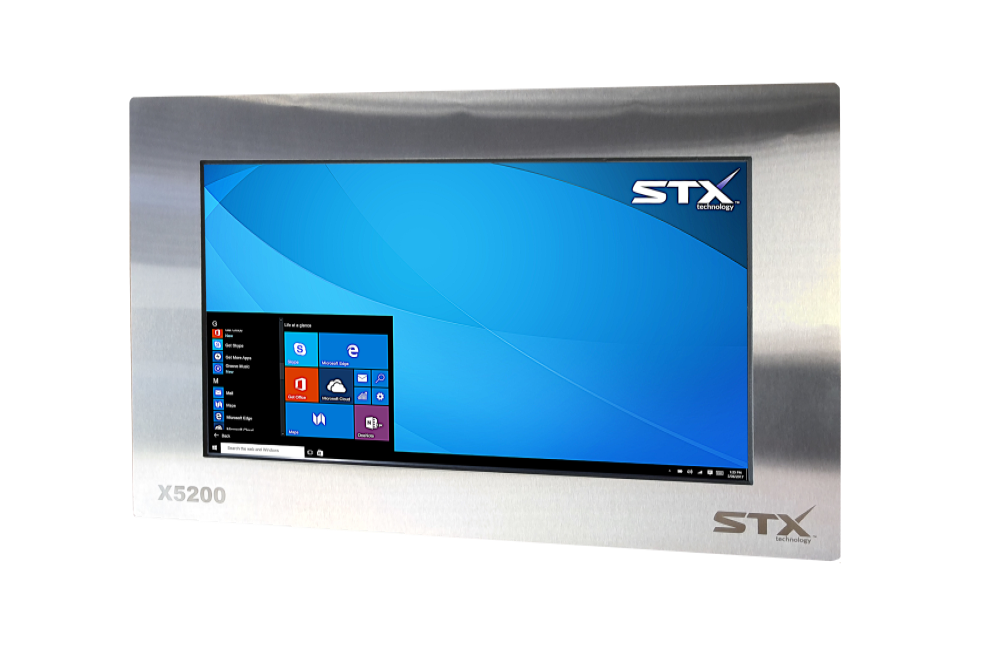

X5224 M 24 Inch Industrial Touch Monitor

  • -24 Inch Touch Monitor
  • - 1920x1080 (Full HD)
  • - 16:9 widescreen display
  • - Multiple CPU options
  • - 304 Stainless Steel
  • - 12VDC or 10~30VDC Power Input
  • - 3rd Generation Product
  • - Panel Mount

Designed specifically for industrial use

Industrial 10VDC~30VDC power input combined with high-quality touch screen and stainless-steel enclosure.

Proven in tough conditions

Tough stainless steel enclosure with fanless construction.

Easy mounting options

Standard mounting for the X5200 is Panel Mount.

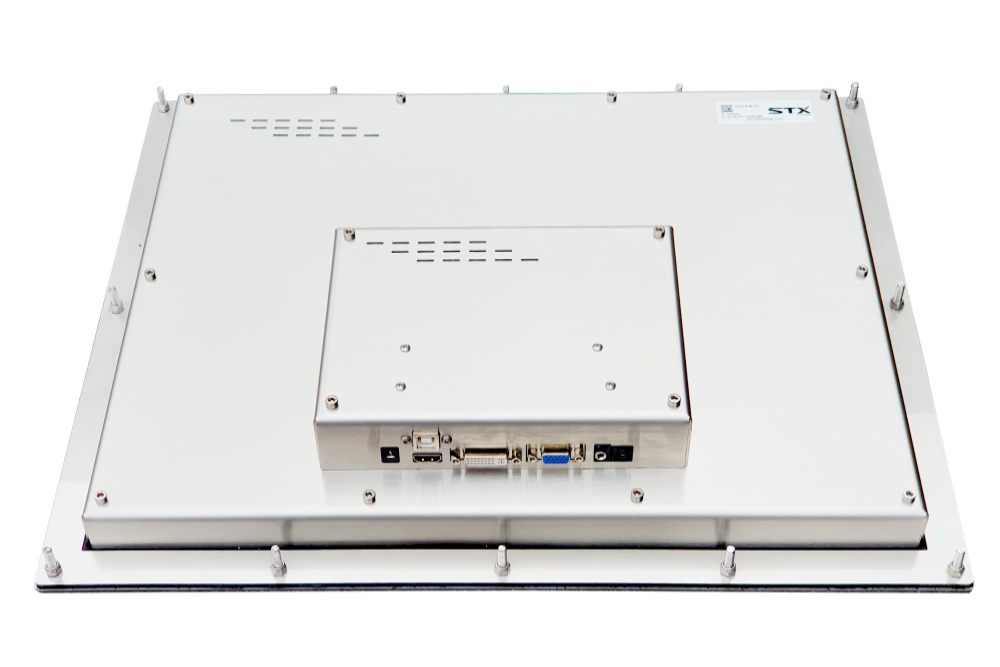

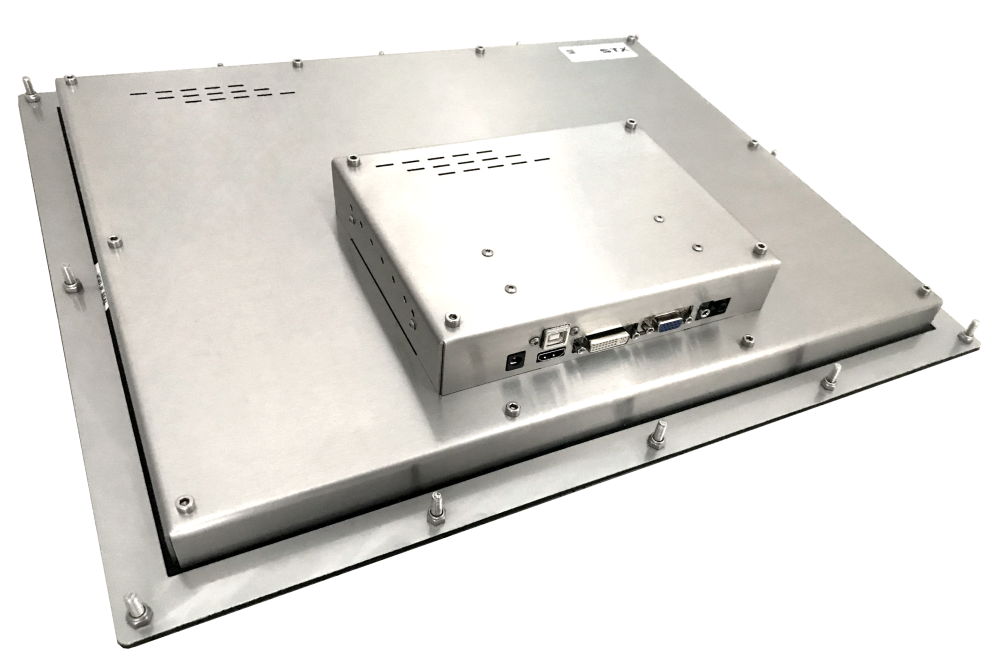

Ports

Ports

Ports include  VGA, HDMI, DVI.





Used across industries

Warehousing, Food Processing, Dairy, Automation & control, Mining, Transportation, Construction, Agriculture, Horticulture, Forestry, Marine and others.





Applications

Can be used for a number of industrial applications including Information display, Safety, CCTV, Data collection, Loading Applications, barcode scanning and others

Contact the STX Team today to find out more about the X5224 M-RT Industrial Touch Monitor and other products.



  • Designed and Built for Tough Environments
  • High Quality 24 inch Resistive Touch screen
  • 1920 x 1080 Full HD Resolution 16:9 (optional 1920 x 1200 WUXGA 16:10 Ratio)
  • Multiple CPU options
  • Tough, Strong Stainless Steel Enclosure
  • Standard Brushed or Highly Polish Finish
  • Wide 10~30VDC Power Input
  • 3rd Generation Product
  • Panel Mount
  • Designed and Manufactured in New Zealand
  • New Zealand, Australian and Global support



X5200 Industrial Touch Panel PC



 X5224-M-RT

  • Resistive Touch Screen
  • 16:9 Display Ratio
  • 1920x1200 WUXGA resolution
  • Stainless Brushed Finish
  • 304 Stainless Steel
  • 12VDC power input
  • Panel Mount



X5200 Industrial Touch Panel PC



X5224-M-PT

  • Projective Capactive Touch Screen (PCAP)
  • 16:9 Display Ratio
  • 1920x1200 WUXGA resolution
  • Stainless Brushed Finish
  • 304 Stainless Steel
  • 12VDC power input (10~30VDC optional)
  • Panel Mount


X5200 Industrial Touch Panel PC

Link Here for Touch Panel PC Range


Other upgrades and mounting options

  Hardware:
  • 256GB or larger SSD
  • 4G
  • GPS
 Materials and Finishes:
  • 316 Stainless Steel
  • Stainless Highly Polished Finish
  • Stainless Matte Black Finish
 Mounting:
  • M4 Stud Mounting
 Power:
  • 10~30VDC
 High Brightness Displays:
  • High Brightness 600 nits display for bright environments
  • High Brightness 1000 nits display for outdoors
Touch
Touch Type Resistive or Projective Capacitive (PCAP)

Display
LCD Size 24 Inch, 16:9 (optional 16:10)
Colours 16.2 million
Resolution 1920 x 1080 Full HD (optional 1920 x 1200 WUXGA)
Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio 500:1
Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time 14.5 msec
Brightness (Typical) 350 nits (optional High Brightness 600 nits or 1000 nits)

Inputs
Touch USB or RS-232
Video VGA, HDMI or DVI

Mechanical & Environmental
Finish 304 Stainless Steel
Mounting Panel Mount
Power Input 12VDC or 10~30VDC&nbsp

Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and keyboard mounting accessories

Click here and link through to accessories

Link Here to Accessories
