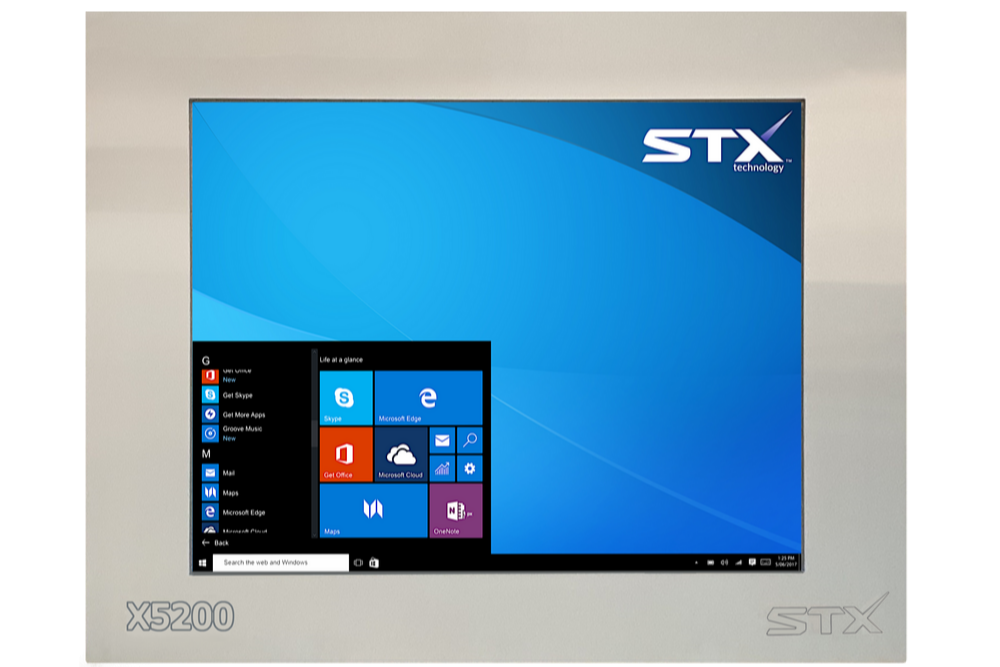

X5212 12.1 Inch Industrial Touch Panel PC

  • - 12.1 inch touch screen
  • - CPU options
  • - 304 stainless steel
  • - 10VDC~30VDC power input
  • - Panel mount

industrial use

Designed specifically for industrial use

  • 10VDC~30VDC power input
  • High quality touch screen

Proven product

Proven in rugged conditions

  • Stainless Steel enclosure

mount

Easy mounting options

  • Panel mount

industrial connectors

IP Rated Industrial Connectors

  • 2 x RS232
  • 1 x VGA
  • 1 x HDMI
  • 2 x Ethernet
  • 2 x USB

Industrial Use

Used across industries

  • Warehousing
  • Food Processing
  • Dairy
  • Mining
  • Transportation
  • Construction
  • Agriculture
  • Horticulture
  • Forestry
  • Marine

applications

Applications

  • Information Display
  • Safety
  • Data
  • Collection
  • Loading Applications
  • Barcode Scanning

STX Technology has extensive experience in the design and manufacture of industrial, tough environment computing with proven products in an array of rugged environments. For an industrial touch computing solution for virtually any application, the quality and integrity of the X5200 range ensures reliability and performance.

Contact the STX Team today to find out more about the X5212 Industrial Touch Panel PC and other products.

  • Designed and built for tough environments
  • Resistive touch screen
  • CPU options
  • Strong Stainless Steel enclosure
  • Brushed or highly polished Finish
  • Wide 10~30VDC power input
  • Panel mount system
  • Designed and manufactured in New Zealand
touch screen



resistive touch screen

Resistive







X5212 - C4 - RT

2.4GHz Intel® Quad core N4200
4GB DDR3 RAM
120GB SSD
Panel mount
10~30VDC power input







X5212 - C5 - RT

3.0GHz Intel® Quad core i5-7300U
4GB DDR4 RAM
120GB SSD
Panel mount
10~30VDC power input





X5212 - C7 - RT

3.5GHz Intel® Quad core-i7-7500U
4GB DDR4 RAM
120GB SSD
Panel mount
10~30VDC power input



OPTIONS



Ram (C5 & C7 only)

8GB
12GB
20GB

Components

256GB or larger SSD3
RS232, HDMI & VGA ports
Ethernet 1000 Mbp ports
3G/4G
GPS
CAN bus

High Brightness Displays

600 nits for bright environments
1000 nits for outdoors

Finishes

304 Stainless steel
316 Stainless steel
Brushed
Highly polished
Matte black



resistive touch screen



Link Here for Monitor Range



Click here and link through to accessories

Accessories include wall mounting brackets, IP68 keyboards and keyboard mounting accessories

  • Gasket for use with Panel Mount Option
  • X5200 60W Power Brick - X5200-PB603P

Touch
Touch Type Resistive

Display
LCD Size 12.1 Inch, 4:3
Colours 16.2 million
Resolution 1024 x 768
Other Supported Resolutions 640 x 480, 800 x 600,
Contrast Ratio 500:1
Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time 14.5 msec
Brightness (Typical) 350 nits (optional High Brightness 600 nits or 1000 nits)

System
CPU 2.4GHz Intel® Quad Core CPU (optional 3.0GHz Intel® Core™ i5 CPU and 3.5GHz Intel® Core™ i7 CPU )
System Memory 4 GB DDR3 (optional 8GB DDR3 or 8GB, 16GB, 32GB DDR4 with i5 and i7 CPU)
Hard Drive 120GB SSD (optional 256GB or larger SSD)
Operating systems Windows 10 (optional Windows 7, Windows 8.1, Windows XP, Linux, Android)

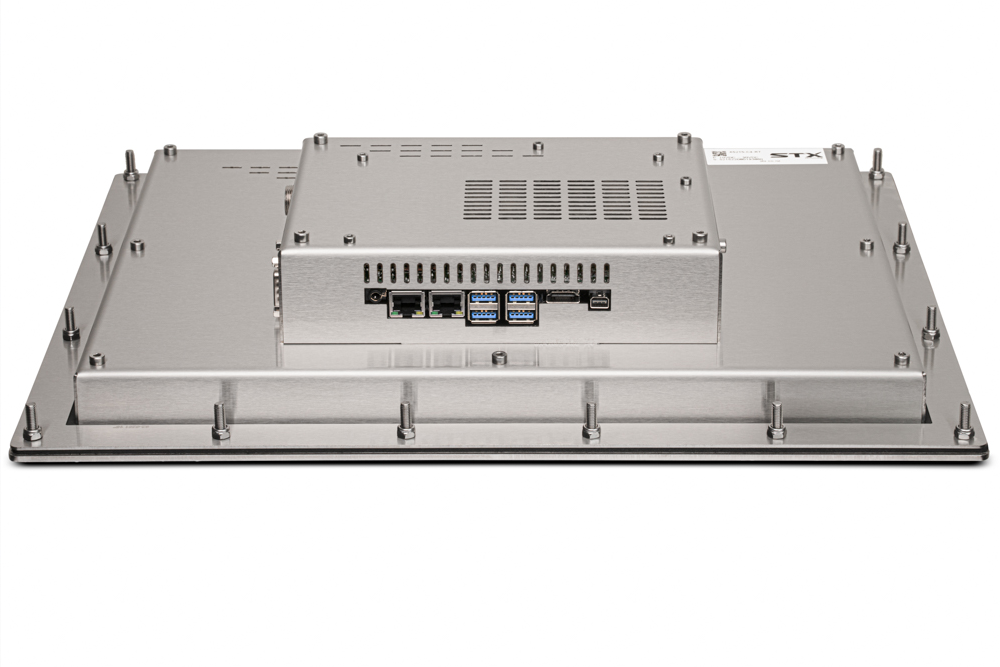

Rear I/O
Serial Port 2 RS-232 (optional up to 6)
Ethernet 2 Ethernet 1000 Mbp (standard), 3 Ethernet (optional)
USB 1 USB 2.0 1 USB 3.0 (optional up to 4 USB 2.0)
Connectors 3 Pin Power Connector

Mechanical & Environmental
Material 304 or 316 Stainless Steel
Mounting Panel mount
Finish Brushed (optional highly polished or matte black)
Power Input 10~30VDC (optional 110~240VAC Power brick, other voltages)

Options
Connectivity Wi-Fi & Bluetooth
  4G & GPS
  High speed serial RS232/RS422/RS485 (to 3M Baud)
  CAN bus
